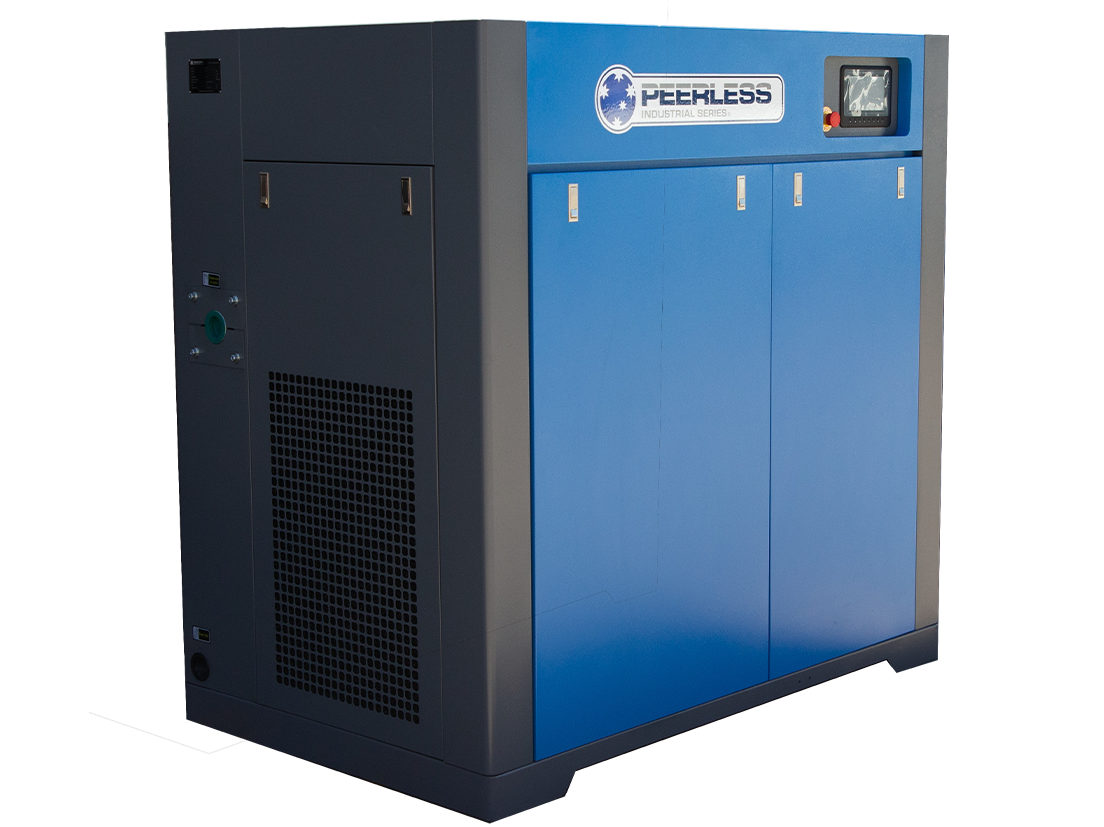

Peerless HQD120

HQD120 Rotary Screw Air Compressor with Variable Speed: Direct Drive, 120HP, 9905-14000LPM

Save power & money! Variable speed technology! 494CFM / 8 Bar (14000L/min @ 116PSI) Max 13 Bar. High pressure!. Get as a base, or with screw, dryer and tank as one.
  • Availability:
    In Stock
  • SKU:
    HQD120VSHP-8
Retail $56,375.00
Cost $56,375.00 Retail
Discount 0
Tax included.
Pickup available at Distribution Centre & Factory - VIC, Bendigo

Usually ready in 2-4 days

Power at a glance.

Free air delivery

Litres per minute of air

14000LPM @ 116PSI

Motor

120HP 3 Phase

Pressure

Pounds per square inch

Max 145 PSI

Warranty

Overall

1 Year / +1 Year parts

See all the specs

Save power & money! Variable speed technology!

icon

Warranty.

Full 1 Year industrial warranty with an additional 1 Year parts.

icon

Intelligent Control Panel.

Function at your fingertips. Fully automated touchscreen control panel.

icon

Peace of mind.

Full range of service kits and spare parts available. Guaranteed back up and support.

icon

Energy Efficient.

Save up to 35% in power compared to fixed speed units.

Product description

Peerless Products Variable Speed Rotary Screw Compressors are here to save you money!

Stop buying air compressors that run continuously when you're not using the air. This machine will perform to your requirements and save you money at the same time.

Variable speed means, if you're using 8 bar, consuming 6 bar 800LPM and the compressor is designed to produce 3600LPM, it will slow down to the air required without any air fluctuation between load and unload pressures keeping a constant pressure (1bar = 5% energy).

With the motors high efficiency for lower HP consumption, the speed regulation of a minimum and maximum speed plays a huge part in energy savings. The energy savings from this design is practically putting money back in your pocket!

Our HQD Variable Speed Compressors will reduce your power consumption and give you a quick return on your investment within no time.

Air dryers are available to suit each model and you have the flexibility of choosing your own tank size that will best suit your individual needs in terms of capacity and overall size.

Ease of servicing also makes this unit very attractive. All main componentry have easy access panels along with our basic service guide so you or your local service agent can service without any issues.

Services on Screw compressors are based on hourly usage. The first inspection is in 500 hours of use, this is like a new car inspection. This is to make sure that all seals, valves, filters and oil condition is all working correctly. From there the services are based on the following;

2000 Hours
4000 Hours
6000 Hours
8000 Hours and so on.

The services are also based on the environmental conditions – if it is in a fairly dirty environment, services maybe at sooner intervals.

Most sites where an air compressor is installed you may have your own maintenance team, if this is so, yes you can service your own air compressor. This does not void your warranty if serviced correctly under the manufacture guidelines.

All parts and service kits are readily available through Peerless Products along with technical support if required. For help sizing up what compressor will best suit your application speak to a Peerless Specialist.

Please note: Power supply is very important when selecting an air compressor, along with selecting the right one for the application. Please talk to your local Peerless representative.

Base Mount (No tanks)
The base mount option is a great option if you're limited on space or if you already have an air receiver. Don't forget, if you're upgrading from an older piston model, you may be able to utilise the tank.

Key things to check:

  • Check the positioning of your air compressor – no direct sunlight, efficient air flow, non-dusty environment, cool if required.
  • Change the oil -  if discoloured change immediately, this is the life line of your air compressor.
  • Change the air intake filter - This will keep the pump working efficiently and keep the oil clean protecting your bearings or Air-end.
  • Check your air fittings – Air leaks create increased duty cycles making your air compressor work harder, creating heat.

Peerless Products are a professional wholesaler that distribute their products through a dealer network. They provide you local expert advice and support backed by Peerless Products. We pride ourselves on aftermarket support and service partnered with our platinum dealers. This is so you have a physical "go to" for any support required. Having that local touch of a "go to" that support you and your business enables that extra bit of confidence when purchasing a Peerless branded air compressor.

Technical Specifications
Code HP / kW Dimensions (LxWxHmm) Weight Amps Required Tank Capacity (L)
HQD120VSHP 120HP / 90kW 2150x1250x1670 2150 - -

Free Air Delivery

Code PSI Bar LPM M3/m CFM
HQD120VSHP-8 116 8 14000 14 494.69

Technical Data

Cooling method discharge temp (°C) Driving type dBa (+/-2) Outlet thread Electricity Amps draw (Full load)
Air cooled Ambient temp +15°C Direct drive 70 2"BSP 415V 98.3

Dryer Specifications

Code Model Compressor KW Working Pressure LPM m3/h CFM Power Plug
WB120D WB120 Dryer 1170W Min. 6 Bar
Max. 13 Bar
10500 630 371 10A
