Power on the go.
Take your compressor wherever you go with its easy and flexible design.
Trade Series TS17W

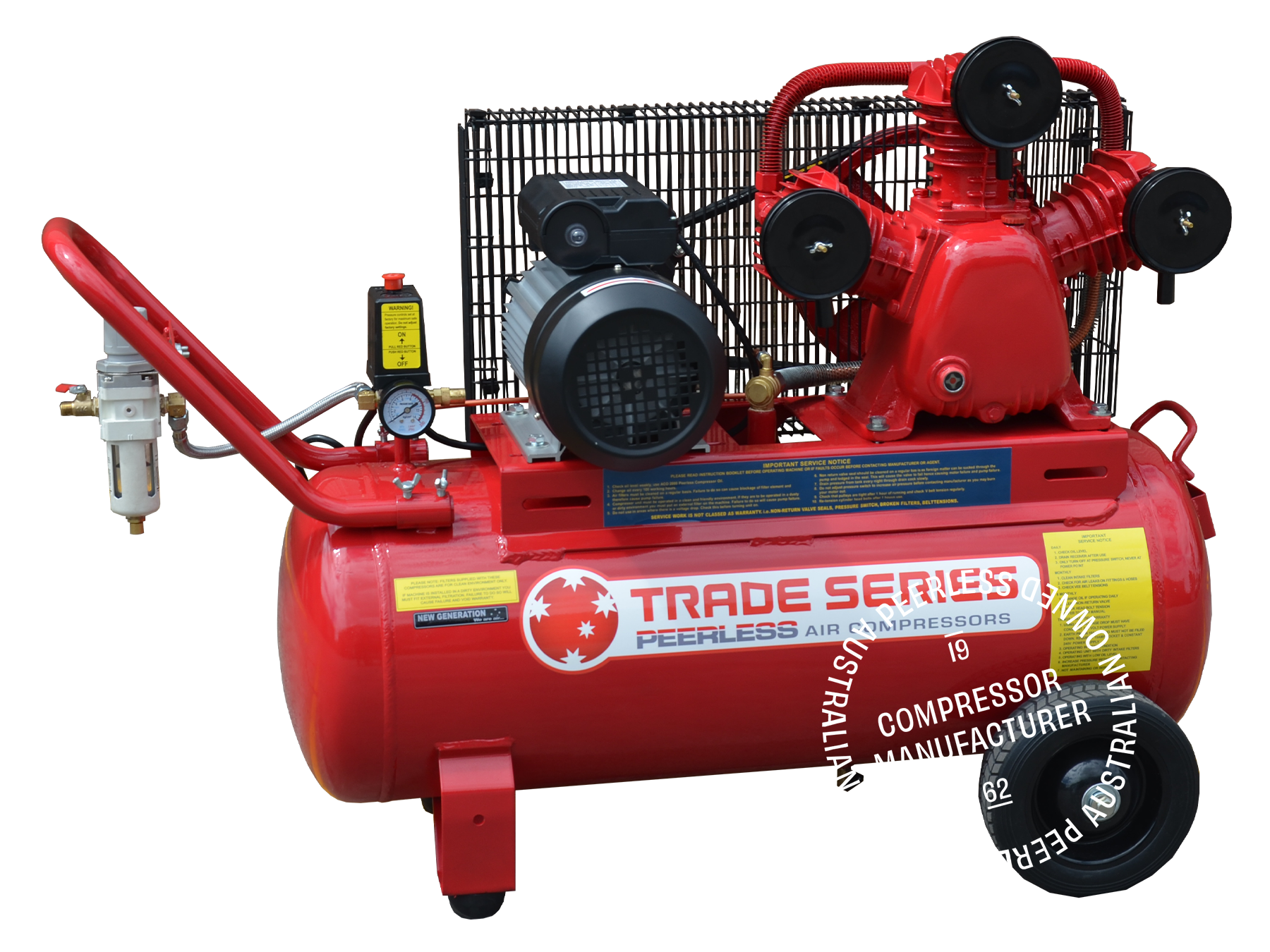

TS17W Single Phase Air Compressor: Belt Drive, 15Amp, 3HP, 300LPM
Compact commander: 300L/min free air. outlet: water trap filter regulator. Cast iron pump, 3-year warranty. Impressive performance in a compact design.
Retail
Cost
Retail
Retail
Discount 0
Tax included.
Power at a glance.
|
Free air delivery Litres of air per minute |
300LPM @ 100PSI |
|
Pressure Pounds per square inch |
Max 145 PSI |
|
Motor |
Electric 3HP |
|
Power supply |
15 Amp Plug |
Impressive performance in a compact design.
Product description
Technical Specifications
Spare parts
The "Trade Series" TS17W is a mid tier 3HP single phase air compressor when you put it up against the Peerless P17 model. But in saying so, it does deliver 300 litres of air per minute at 100PSI, fitted on a 70L pressure vessel. Removable handle makes it easy to store in a confined space, with a regulator mounting point on the handle. Solid wheels and a wire belt guard compared to metal cased, makes this the mid tier in comparison.
If you're looking at just mounting to the ground, it will sit flat without the wheels. Standard metal intake filters with replicable element cartridges.
Available exclusively through our Peerless Platinum dealer network.
| Code | Model | Pump Displacement (CFM) | Free Air Delivery (LPM) | Max PSI | Motor HP | Warranty Pump |
Warranty Motor |
Tank Capacity (L) | Pump up time to 100PSI |
Dimensions (mm) Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| TS17W | TS17W | 17 CFM | 300 LPM | 145 | 3 | 3 Years | 1 Year | 70L | - | 1100L x 400W x 800H 85kg |
Technical Data
| Cooling method |
Pump type | Cylinders | Pump head tension |
Oil capacity | Pump RPM | Outlet thread | Electricity | Amps draw |
|---|---|---|---|---|---|---|---|---|
| Air cooled | PB40 | 3 | 16 FT LB 22.4NM |
1.35L | 880 | 1/4"BSP | 240V / 15A | 13 |
Trade Series air compressors
Peerless "Trade Series" of air compressors are a mid tier. Unlike the Peerless blue flagship range, the pistons are a smaller diameter with slightly higher pump revving. This delivers a lesser air delivery based at the delivery, but suited for some areas of the market as a price point. Warranties on this particular range range from 1 year to 3 years.
Available exclusively through our Peerless Platinum dealer network.
