Peerless P14

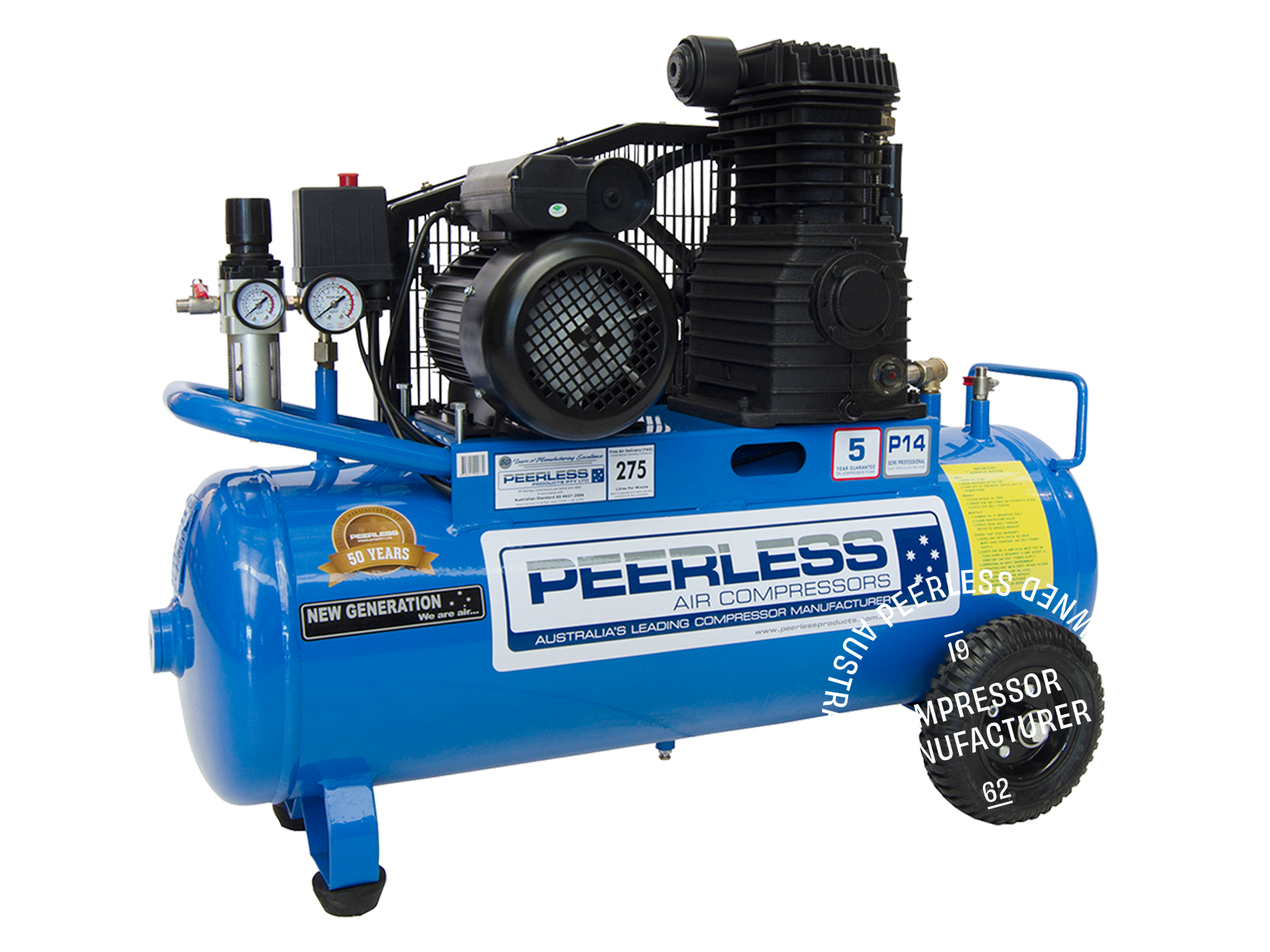

P14 Single Phase Air Compressor: Belt Drive, 10Amp, 2.75HP, 275LPM

Ultimate performance: 275L/min free air. Dual outlets: water trap filter regulator, direct tank pressure. Peerless cast iron pump, 5-year warranty. Impressive performance with reliability.
  • Availability:
    In Stock
  • SKU:
    00257 (P14)
Retail $2,180.00
Cost $2,180.00 Retail Retail
Discount 0
Tax included.

Power at a Glance

Free air delivery

Litres per minute of air

275LPM @ 100PSI

Motor

Electric 2.75HP

Pressure

Pounds per square inch

Max 145 PSI

Power supply

10 Amp Plug

Warranty

Pump / Motor / Tank

5 Years / 1 Year / 10 Years

See all the specs
P14 Single Phase Air Compressor: Belt Drive, 10Amp, 2.75HP, 275LPM

Impressive performance with reliability.

icon

Power friendly.

Smart Start Filter - U.S.A made to reduce start up AMPs by up to 40%.

icon

Power on the go.

Take your compressor wherever you go with its easy and flexible design.

icon

Warranty.

Warranty - 5 year pump, 1 year motor. A quality compressor that stays protected for years to come.

Product description

This is one of the biggest single phase air compressors on 10A power supply. Producing 275 litres per minute of free air delivery, which out performs most of our competitors on the market. A huge 5 year pump warranty, you have the confidence that you've invested in the right air compressor to do your job.

The P14 has 2 outlets on this machine, one through the water trap filter regulator with auto drain that's fitted and one that's placed at the end of the tank for direct tank pressure.

Some of the major features of the P14 is the slow revving cast iron pump (852RPM) making this air compressor super quiet compared to other brands in the market, solid belt guard along with solid rubber wheels and a removable handle.

Comes with "Smart Start" (Made in USA) intake filter which assists in the protection of the electric motors against low voltage starting, this filter reduces starting AMP's draw by up to 40%.

Able to run;

  • Low pressure spray gun
  • High pressure spray gun
  • Car tyre inflation gun
  • Stapling Fitting gun
  • Framing nail gun
  • Grease gun
  • Chalking gun
  • Riveter gun
  • Screw driver
  • 1/2” Ratchet gun
  • 1/2” Impact gun
  • High Torque 1/2” Impact gun
  • Engine Clean Gun
  • Sandblast gun
  • Air Hammer

Performance of all our belt driven air compressors are to AS4637.

For over 60 years Peerless Products has been delivering and exceeding the needs of industry. Ask us about your requirements.

Technical Specifications
Code Model Pump Displacement (CFM) Free Air Delivery (LPM) Max PSI Motor HP Warranty
Pump
Warranty
Motor
Tank Capacity (L) Pump up
time to 100PSI
Dimensions (mm)
Weight (kg)
00257 P14 14 CFM 275 LPM 145 2.75 5 Years 1 Year 55L 1.25 - 1.30 Min 1050Lx430Wx770H
85kg

Technical Data

Cooling
method
Pump type Cylinders Pump head
tension
Oil capacity Pump RPM Outlet thread Electricity Amps draw
Air cooled N75 2 16 FT LB
22.4NM
1L 852 1/4"BSP 240V / 10A 10
Spare parts
Retail $135.00
Cost $135.00 Retail Retail

Compressor service kit to suit P14 / P17 / P20HF.

Individual Items for N75, C5 Service Kit


Retail $1,355.00
Cost $1,355.00 Retail Retail

Top End of Pump N75

Internal Components of Pump N75

External / Body Components of Pump N75


Retail $834.00
Cost $834.00 Retail Retail

Components of 2.75HP Single Phase Motor


Retail $2,180.00
Cost $2,180.00 Retail Retail
Portable

Ultimate performance: 275L/min free air. Dual outlets: water trap filter regulator, direct tank pressure. Peerless cast iron pump, 5-year warranty. Impressive performance with reliability.

Additional Components of P14


Single phase air compressors

All Peerless single phase compressors are designed for efficiency and are suitable for full industrial use. Each compressor also features a smart start filter, reducing startup amps by 30-40%, making them ideal choices for use in low voltage areas.
