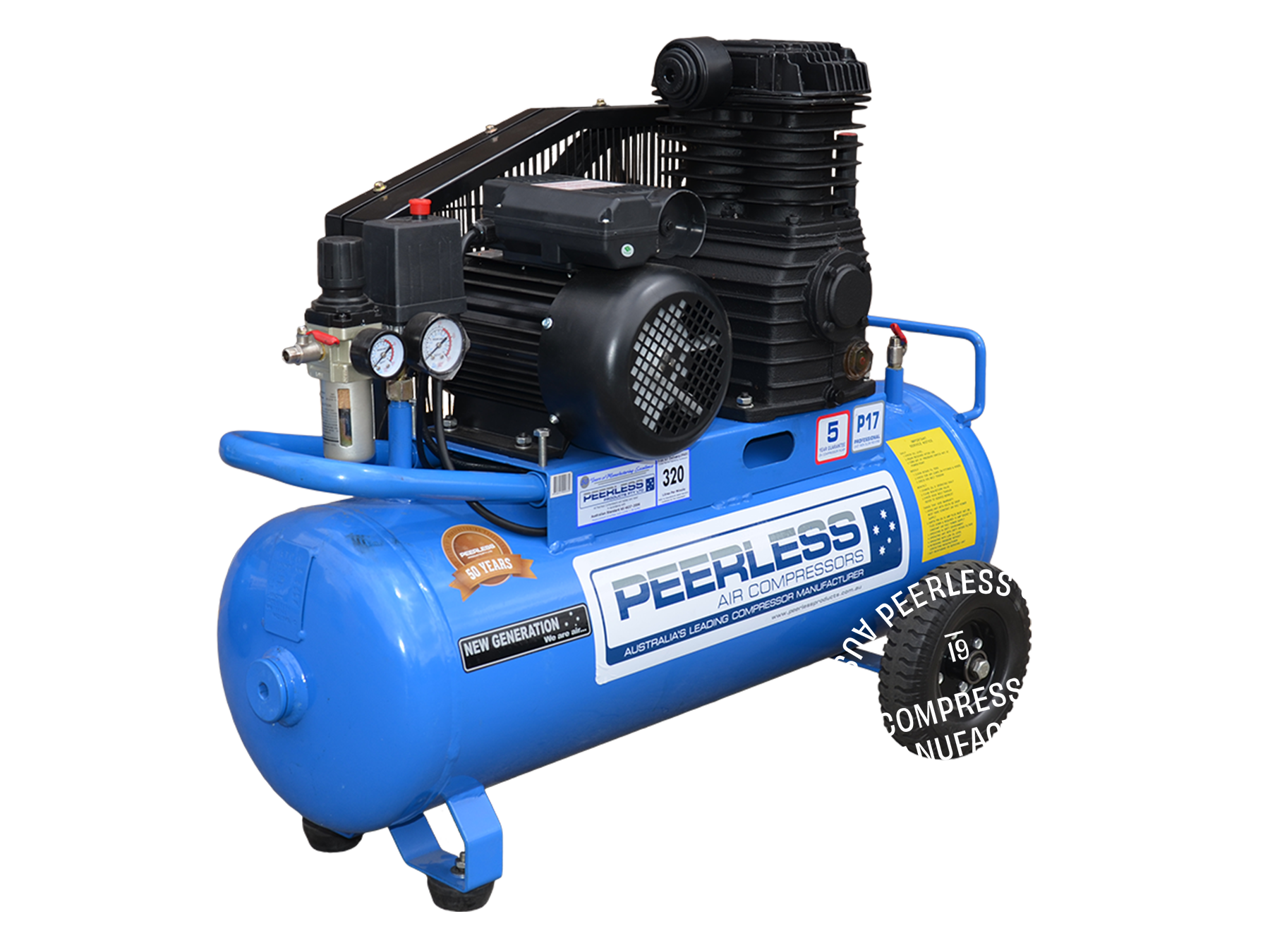

Peerless P17

P17 Single Phase Air Compressor: Belt Drive, 15Amp, 3.5HP, 320LPM

Ultimate performance: 320L/min free air. Dual outlets: water trap filter regulator on portable model, direct tank pressure. Peerless cast iron pump, 5-year warranty. Impressive performance with reliability.
  • Availability:
    In Stock
  • SKU:
    00087 (P17)
Retail $2,300.00
Cost $2,300.00 Retail Retail
Discount 0
Tax included.

Power at a Glance

Free air delivery

Litres per minute of air

320LPM @ 100PSI

Motor

Electric 3.5HP

Pressure

Pounds per square inch

Max 145 PSI

Power supply

15 Amp Plug

Warranty

Pump / Motor / Tank

5 Years / 1 Year / 10 Years

See all the specs
P17 Single Phase Air Compressor: Belt Drive, 15Amp, 3.5HP, 320LPM

Impressive performance with reliability.

icon

Warranty.

Warranty - 5 year pump, 1 year motor. A quality compressor that stays protected for years to come.

icon

Power on the go.

Take your compressor wherever you go with its easy and flexible design.

icon

Power friendly.

Smart Start Filter - U.S.A made to reduce start up AMPs by up to 40%.

Product description

The P17 single phase air compressor is one of the biggest machines on a 15AMP plug producing 320 litres per minute of free air delivery.

Cast iron crankcase, stainless steel valves and a slow revving pump also makes this one of the quietest on the market. Our competitors are too scared to mention their pump RPM!
With a Smart Start filter supplied, this will help reduce the AMP draw on start up by letting the motor get up to RPM before sucking air through the inlet and helps reduce the load on the motor.

Comes with 2 outlets, one out from the water trap regulator and one directly out from the tank for full tank pressure. Built to last with solid puncture proof wheels. Having one of the largest warranties on the market, 5 Year Pump and 1 Year Motor Warranty this puts your mind at rest when investing in a quality product.

Due to its popularity the P17 also comes in a fatboy model and a vertical design, both featuring 110l tanks. When portability isn’t required both these option are perfect with an increased compressed air storage.

Able to run;
Low & high pressure spray guns
Car tyre inflation gun
Stapling / fitting gun
Framing nail / Grease gun
Chalking gun / Riveter gun
Pneumatic Screw driver
1/2” Ratchet gun
1/2” Impact gun
Air duster
4” Angle grinder
6” Orbital sander
Air drill
Engine cleaning gun
Sand blasting gun
Air hammer
Hi torque 1/2” Impact gun
1/4” Die grinder

Performance of all our belt driven air compressors are to AS4637.

For over 60 years Peerless Products has been delivering and exceeding the needs of industry. Ask us about your requirements.

Technical Specifications
Code Model Pump Displacement (CFM) Free Air Delivery (LPM) Max PSI Motor HP Warranty
Pump
Warranty
Motor
Tank Capacity (L) Pump up
time to 100PSI
Dimensions (mm)
Weight (kg)
00087 P17 17 CFM 320 LPM 145 3.5 5 Years 1 Year 55L 1.10 - 1.15 Min 1050Lx430Wx770H
85kg
00380 P17FB 17 CFM 320 LPM 145 3.5 5 Years 1 Year 110L 2.20 - 2.25 Min 1090Lx450Wx880H
110kg
00086 P17V 17 CFM 320 LPM 145 3.5 5 Years 1 Year 110L 2.20 - 2.25 Min 640Lx500Wx1500H
110kg

Technical Data

Cooling
method
Pump type Cylinders Pump head
tension
Oil capacity Pump RPM Outlet thread Electricity Amps draw
Air cooled N75 2 16 FT LB
22.4NM
1L 963 1/4"BSP & 1/2"BSP 240V / 15A 13
Spare parts
Retail $135.00
Cost $135.00 Retail Retail

Compressor service kit to suit P14 / P17 / P20HF.

Individual Items for N75, C5 Service Kit


Retail $1,355.00
Cost $1,355.00 Retail Retail

Top End of Pump N75

Internal Components of Pump N75

External / Body Components of Pump N75


Retail $996.00
Cost $996.00 Retail Retail

Components of 3.5HP Single Phase Motor


Retail from $2,300.00
Cost from $2,300.00 Retail Retail
Portable

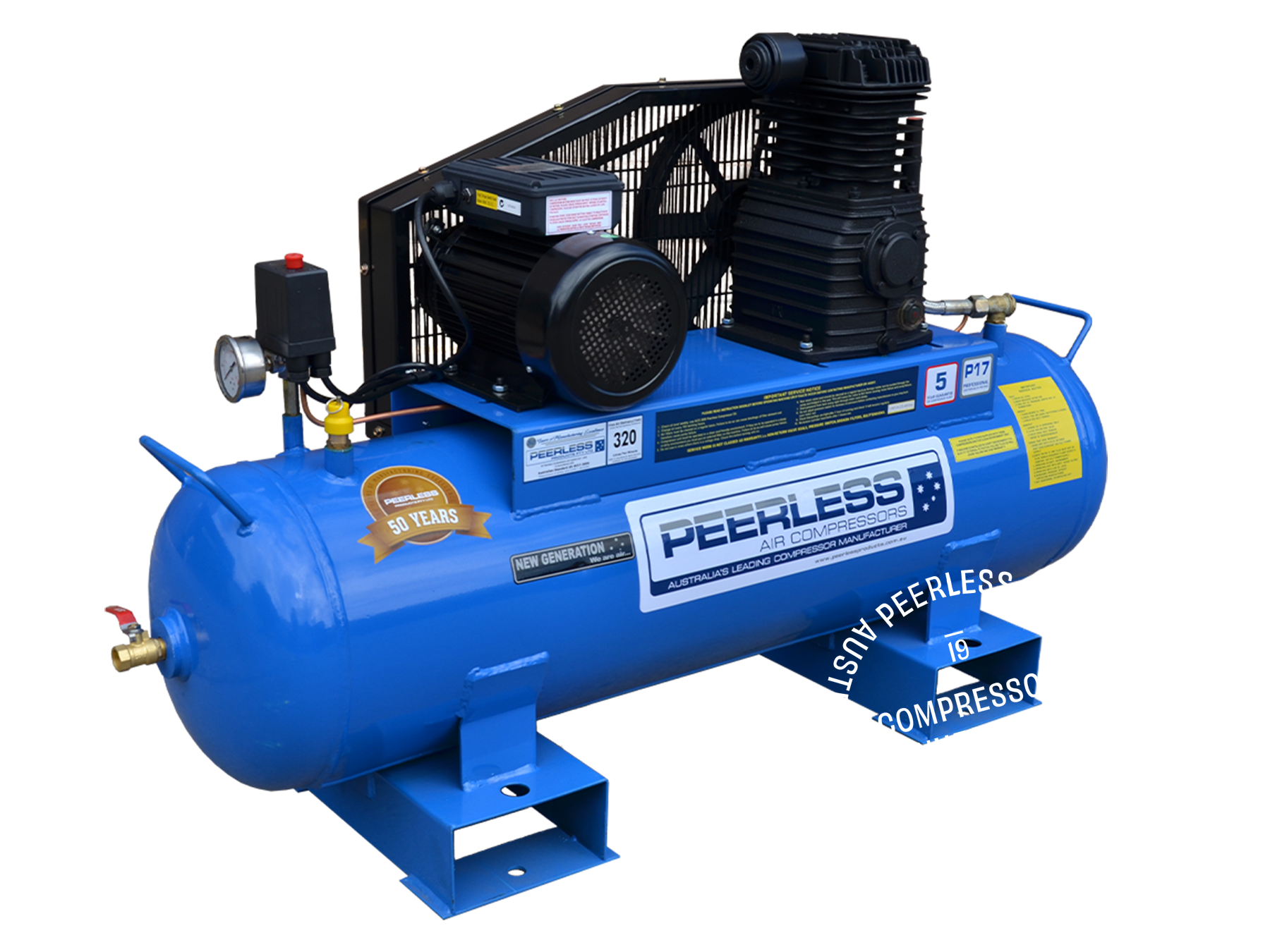

Fatboy
Vertical

Ultimate performance: 320L/min free air. Dual outlets: water trap filter regulator on portable model, direct tank pressure. Peerless cast iron pump, 5-year warranty. Impressive performance with reliability.
